MBL-910-ST4 MBL Series Machine Lighting
MBL-910-ST4
Description

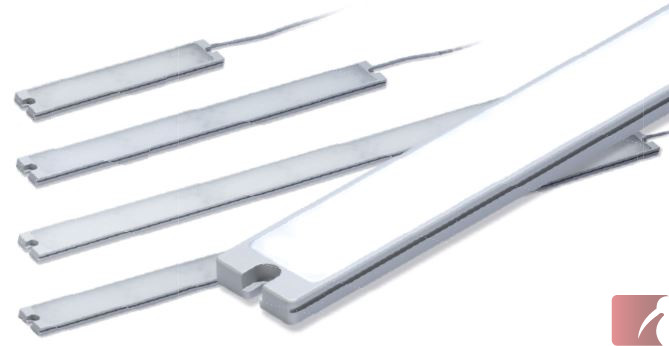

MBL Series, 882 x 32 mm Machine Lighting Surface
Product Overview:
- Illumination surface area of 882 x 32 mm
- Illumination level at 0.5 metres: 7400 lux, at 1.0 metres: 2165 lux
- Luminous flux: 5100 lm
- Colour temperature: white 5000K
- Colour rendering index: 85
- Dimming and switching by PWM - input: Use with separately sold dimmer module, see here Part # MBL-DIM
- Supply voltage: 24 VDC, PWM up to 15 kHz
- Current consumption at 24 VDC: 1800 mA
- Polarity protected
- Shock & vibration: 30g / 10-55 Hz, 1 mm
- Temperature rating: -25°C to + 50°C
Packaging:
- Housing is silver aluminum
- Overall dimensions: 910 x 40 mm
- Connection via attached M12, 3-pin male 300 mm cable
- IP 67 sealing level
Mounting Accessories:
- Mounting brackets, see here Part # MBL-BEF
- Mounting magnets, see here Part # MBL-MAG
- Mounting nuts for ITEM aluminum extrusions, see here Part # MBL-NUT
Specifications
Color:
Silver
Package Quantity:
1
