70 x 64 mm Optical Frame / Window Sensor with Analog Output

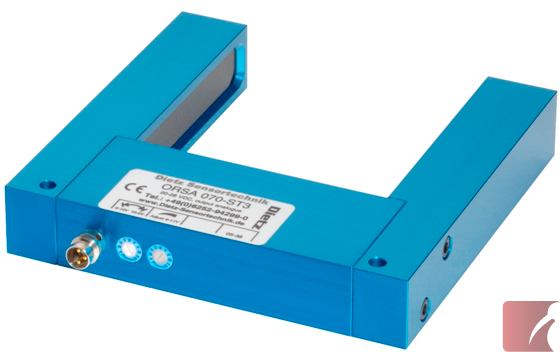

ORSA 070-ST3

Description

70 x 64 mm Frame Sensor with Analog Output

Also known as an optical Frame Sensor, photo electric frame light barrier or optical window sensor.

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained multiiple beam sensor technology with adjustable sensitivity

Infrared light

Output - Analog invertable 0 - 10V, 10 - 0V

Fast response time with high resolution

Operating temperature range of 0ºC to +55ºC

IP 67 sealing level in a robust metal housing

Very easy to install. No alignment is required

Technical Data:

  • Frame / Window active sensing area  - 70 x 64 mm
  • Resolution - 2.0 mm detectable object size
  • Supply voltage - 20 to 28 VDC
  • Max output current - 10 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 70 mA
  • Voltage insulation - 500 V , Voltage drop < 2.5V
  • Response time - 0.2 ms
  • Repetition frequency - 1 kHz
  • Basic setup - adjustable 9 - 11V
  • Ambient light immunity of 10 k Klux
  • Sturdy anodized aluminum housing
  • M8 (3 wire) connector

Applications for Frame Sensors & Window Sensors with analog output:

  • Measuring & verifying the high or width of an object while in process or in motion
  • Part ejection verification
  • Edge detection
  • Packaging and material handling equipment
  • Numerous automation, machinery, food, pharmaceutical & automotive assembly uses

Specifications

Colour:
Black
Weight:
0.2 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Frame Sensors
Sensor Active Area:
70x70 mm
Sensor Connection:
M8 - 3 Pole
Sensor Output:
Analogue 0-10V

Certifications

Alternate SKU Numbers

ORSA.070-ST3 | ORSA-070-ST3 | ORSA070-ST3 | ORSA+070-ST3 | ORSA+070-ST3 | ORSA 070,ST3 | ORSA 070.ST3 | ORSA 070 ST3 | ORSA 070ST3 | ORSA 070ST3 | ORSA070ST3
