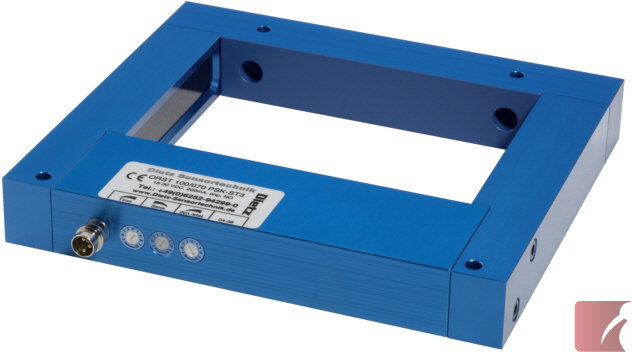

100 x 62 mm Frame Sensor / Window Sensor PNP / NO
ORST 100/070 PSK-ST3

Description


100 x 62 mm Frame Sensor with PNP, NO output

Infrared light with adjustable sensitivity

Output - PNP, NO

Switchable static / dynamic operating modes

Fast response time with high resolution

Pulse stretching adjustable from 1 - 150 ms

Operating temperature range of -5ºC to +55ºC

IP 67 sealing level in a robust metal housing with a removable crossbar

  • Frame active area  - 100 x 62 mm
  • Resolution - 2.5 mm detectable object size
  • Supply voltage - 18 - 30 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 130 mA
  • Voltage insulation - 500 V , Voltage drop < 2.5V
  • Response time - 0.2 ms
  • Switching frequency - depends on pulse stretching
  • Sensitivity adjustable
  • Ambient light immunity of 10 k Klux
  • Sturdy anodized aluminum housing
  • M8 (3 wire) connector

Specifications

Colour:
Blue
Weight:
0 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Frame Sensors
Sensor Active Area:
100x70 mm
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Infrared
Sensor Operating Principle:
Selectable
Sensor Output:
PNP / NO

Certifications

Alternate SKU Numbers

ORST.100/070.PSK-ST3 | ORST-100/070-PSK-ST3 | ORST100/070PSK-ST3 | ORST+100/070+PSK-ST3 | ORST+100/070+PSK-ST3 | ORST 100/070 PSK,ST3 | ORST 100/070 PSK.ST3 | ORST 100/070 PSK ST3 | ORST 100/070 PSKST3 | ORST 100070 PSKST3 | ORST100070PSKST3
