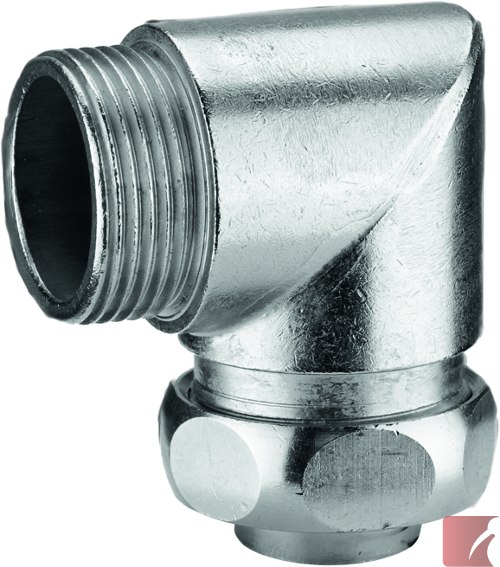

USW-M for AIRflex® KUW, GRS, K conduits
5010.530.032

Description


M32 x 1.5 mm 90° elbow connector for 27.0 mm OD conduit, outer thread, made of nickel plated brass

IP 54 sealing level

-40ºC to +125ºC

Use with the following conduits:

  • AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

Construction

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic

Properties

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • covered conduit ends
  • good vibration and tension tolerance

Specifications

Connector Thread:
M32 x 1.5 mm
Sealing Level:
IP 54
Colour:
Silver
Weight:
0.0131 kg
Package quantity:
10

Dimensions:
φ I:
19.50
φ B:
39.00
C:
10.00
D:
57.00
Conduit OD:
27.0 mm

Datasheet

Certifications

Alternate SKU Numbers

5010-530-032 | 5010530032 | 5010 530 032 | 5010_530_032 | 5010/530/032 | 5010,530,032 | 5010+530+032
