USW-P for SPR AS / VA & FLEXAgraff® AS / VA conduits
5010.227.007

Description

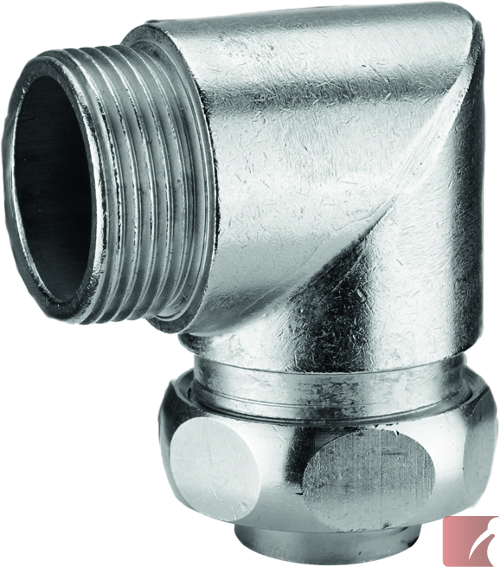

PG 7 - 90° elbow connector for 10.0 mm OD conduit, outer thread, made of nickel-plated brass

IP 40 sealing level

-40ºC to +125ºC

Use with the following conduits:

  • SPR-AS, SPR-VA
  • FLEXAgraff®-AS, FLEXAgraff®-VA

Construction

  • Body and compression nut: nickel-plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic

Properties

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • covered conduit ends
  • good vibration and tension tolerance

Specifications

Connector Thread:
PG 7
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.0028 kg
Package quantity:
25

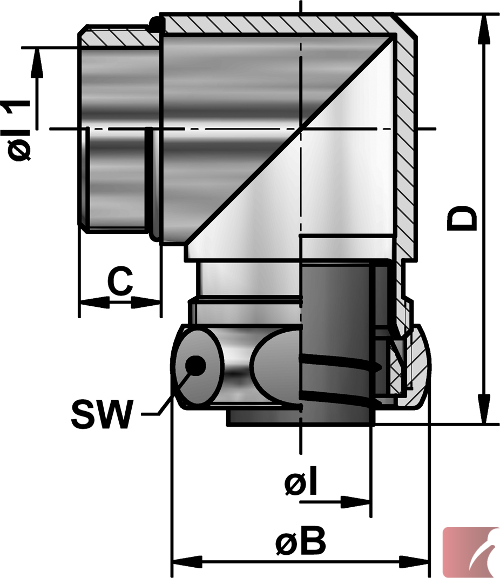

Dimensions:
φ I:
6.50
φ B:
19.00
C:
9.00
D:
36.00
Conduit OD:
10.0 mm
