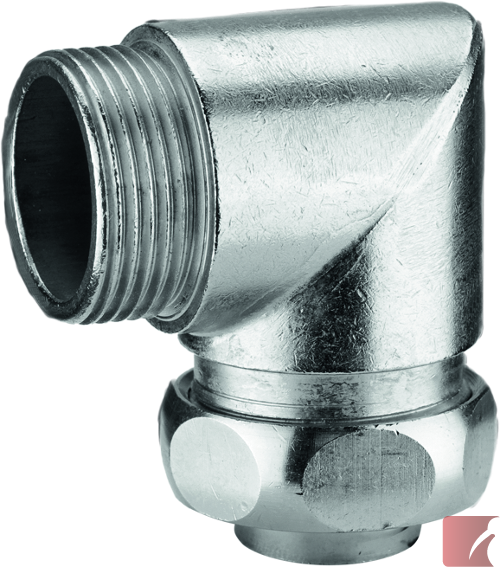

PG 13.5 - 90° elbow connector for 19.0 mm OD conduit, outer thread, made of nickel-plated brass

IP 54 sealing level

-40ºC to +125ºC

Use with the following conduits:

• AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

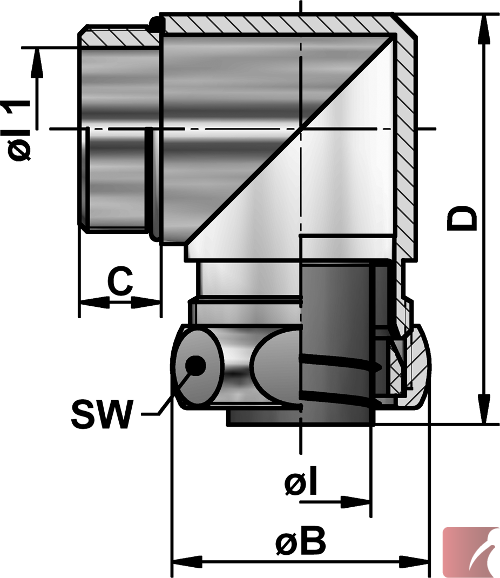

Construction

• Body and compression nut: nickel-plated brass
• Sealing ring: TPE or PTFE
• Thrust collar: brass
• Ferrule: brass or plastic

Properties

• watertight and dustproof
• highly secure compression style mounting of connector to the conduit
• grounding / bonding supported
• covered conduit ends
• good vibration and tension tolerance
