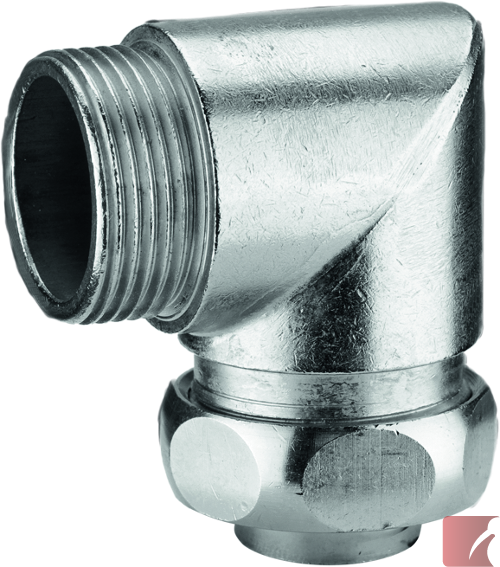

PG 9 - 90° elbow connector for 14.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 & IP 54 sealing level (see below)

-40ºC to +125ºC

Use with the following conduits:

• AIRflex®-KUW-EDU (IP 54 sealing)
• SPR-CU-AS, SPR-EDU-AS (IP 40 sealing)
• SPR-PVC-EDU-AS, SPR-HI-EDU (IP 54 sealing)

Construction

• Body and compression nut: nickel plated brass
• Sealing ring: TPE or PTFE
• Thrust collar: brass
• Ferrule: brass or plastic

Properties

• watertight and dustproof
• highly secure compression style mounting of connector to the conduit
• grounding / bonding supported
• good vibration and tension tolerance
