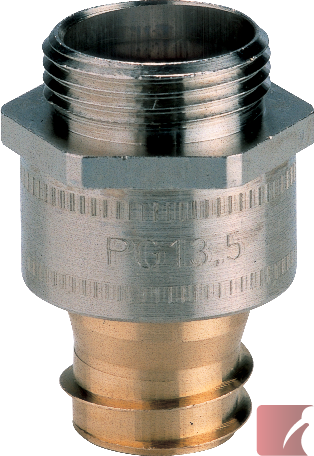

M12 x 1.5 mm straight connector for 14.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 sealing level

-40ºC to +250ºC

Use with the following conduits:

• SPR, SPR-AS, SPR-VA
• SPR-PVC, SPR-PA, SPR-PU-AS, SPR-PU-F,

• FLEXAgraff®-AS, FLEXAgraff®-VA, FLEXAgraff®-PU-F

Construction

• Body and compression nut: nickel-plated brass

• Ferrule: brass

Properties

• the integrated 'screw in' ferrule twists easily into the conduit end
• the ferrule allows the fitting body to 'snap & lock' into place; the connector can rotate after it is mounted
• covers the end of the cut conduit completely

• good vibration and tension tolerance
• Available also in a larger 50 piece pack size. View part # 5010.010.009 on our website
