US-P for FLEXAgraff®-CU, SPR CU / EDU, FLEXAhightemp® conduits
5011.128.016

Description

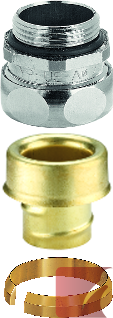

PG 16 straight connector for 21.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 sealing level

-40ºC to +125ºC

Use with the following conduits:

  • FLEXAgraff®-CU-AS
  • SPR-CU-AS, SPR-EDU-AS
  • FLEXAhightemp®

Construction

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic
  • Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • good vibration and tension tolerance

Specifications

Connector Thread:
PG 16
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.0040 kg
Package quantity:
50

Dimensions:
φ I:
15.50
φ B:
31.00
C:
7.00
D:
30.00
Conduit OD:
21.0 mm
