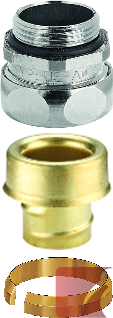

PG 21 straight connector for 27.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 sealing level

-40ºC to +125ºC

Use with the following conduits:

• SPR-CU-AS, SPR-EDU-AS
• FLEXAhightemp®

Construction

• Body and compression nut: nickel plated brass
• Sealing ring: TPE or PTFE
• Thrust collar: brass
• Ferrule: brass or plastic
• Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties

• watertight and dustproof
• highly secure compression style mounting of connector to the conduit
• grounding / bonding supported
• good vibration and tension tolerance
