US-P for FLEXAgraff®-CU, SPR CU / EDU, FLEXAhightemp® conduits
5011.128.048

Description


PG 48 straight connector for 56.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 sealing level

-40ºC to +125ºC

Use with the following conduits:

  • FLEXAgraff®-CU-AS
  • SPR-CU-AS, SPR-EDU-AS
  • FLEXAhightemp®

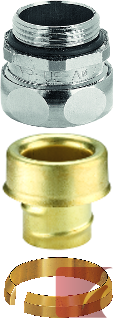

Construction

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic
  • Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • good vibration and tension tolerance

Specifications

Connector Thread:
PG 48
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.0217 kg
Package quantity:
10

Dimensions:
φ I:
47.00
φ B:
70.00
C:
10.00
D:
45.00
Conduit OD:
56.0 mm

Datasheet

Certifications

Alternate SKU Numbers

5011-128-048 | 5011128048 | 5011 128 048 | 5011_128_048 | 5011/128/048 | 5011,128,048 | 5011+128+048
