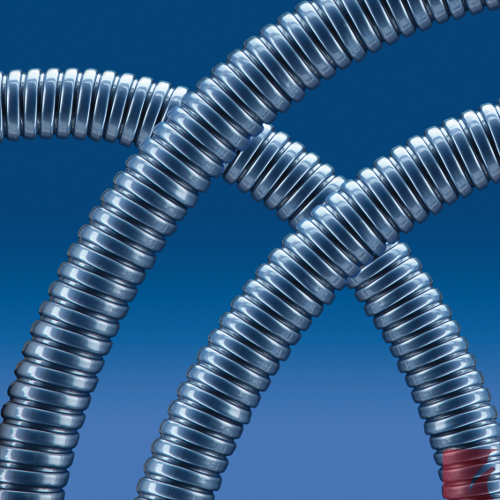

FLEXAgraff®-PU-AS 10 metre coil
2131.101.015

Description


OD 19.0 mm Protective metal liquidtight conduit for wire, cable and fiber optic sensor applications

IP68 - liquid tight

-40ºC to +80ºC ... 120ºC

Material:

  • strip-wound galvanized steel conduit
  • double overlapped profile, round cross section
  • liquidtight polyurethane (PU) sheathing
  • V2 according to UL-94
  • approved to DIN EN IEC 61386-23

Properties:

  • high tensile and anti-twisting strength
  • highly flexible
  • good compression strength
  • stretch resistant
  • resistant to oil, benzene, and grease
  • widely resistant to solvents and acids
  • free of halogen, silicone and cadmium
  • microbe and flame resistant
  • high EMC shielding factor
  • wide application temperature range, excellent low temperature performance
  • also available on a longer 50 metre coil, check under part # 2130.101.015 on our website

Applications:

Excellent for cable & wire protection, optoelectronics and sensor technologies.

Other applications include: machine building, railway industry, shipbuilding and automation.

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Blue
Weight:
0.33 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
19.0 mm
Conduit ID:
15.0 mm
Static Bend Radius:
70.0 mm
Dynamic Bend Radius:
70.0 mm

Certifications

EN 50289-1

Alternate SKU Numbers

1-969786-3 | 2131-101-015 | 2131101015 | 2131 101 015 | 2131_101_015 | 2131/101/015 | 2131,101,015 | 2131+101+015
