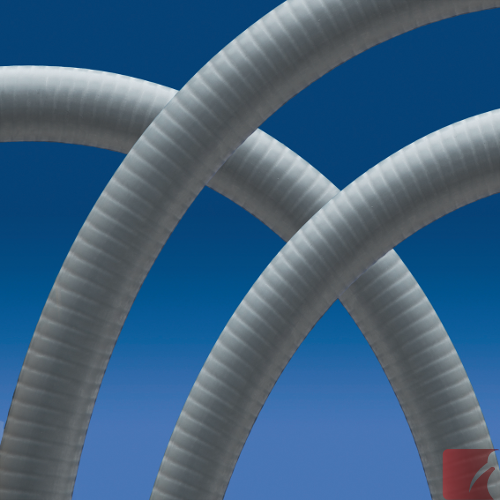

FLEXAgraff®-SI-ASF
2140.801.028

Description

OD 36.0 mm Protective metal silicone jacket liquidtight conduit for wire, cable and fiber optic sensor applications

IP 68 - sealing level

-60ºC to +220ºC

Material:

  • strip-wound galvanized steel conduit
  • double overlapped profile, round cross section
  • liquidtight silicone (SI) sheathing
  • approved to DIN 62386-23

Properties:

  • high tensile and anti-twisting strength
  • highly flexible
  • good compression strength
  • stretch resistant
  • resistant to ozone, ultra-violet radiation and atmospheric influences
  • resistant to certain solvents and acids
  • free of halogen
  • free of toxic and corrosive gases in case of fire
  • low flammability and will not propagate a flame
  • wide application temperature range, excellent extreme temperature performance

Applications:

Excellent for cable & wire protection, in medical equipment, medical scoping devices, optoelectronics and sensor technologies.

Other applications include: medical apparatus, machine building, railway industry, shipbuilding and automation.

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.86 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
36.0 mm
Conduit ID:
27.0 mm
Static Bend Radius:
130 mm
Dynamic Bend Radius:
325 mm

Certifications

Alternate SKU Numbers

2140-801-028 | 2140801028 | 2140 801 028 | 2140_801_028 | 2140/801/028 | 2140,801,028 | 2140+801+028
