SPR-CU-AS
4016.701.017

Description


OD 21.0 mm Protective metal conduit with tinned copper wire braiding

IP 40 sealing level

 ... up to +150ºC

Material:

  • strip-wound galvanized steel conduit
  • hooked profile, round cross section
  • tinned copper (CU) wire braid

Properties:

  • high tensile and anti-twisting strength
  • highly flexible
  • good compression strength
  • stretch resistant
  • high EMC shielding factor up to 30 Mhz according to EN 50298-1-6 up to 80 dB
  • use brass thrust collar for full EMC safe assembly
  • approved to DIN EN IEC 61386-23
  • wide application temperature range

Special lengths & assemblies available:

  • precisely measured lengths fully assembled with connecting elements for EMC applications are available from the factory
  • special EMC safe brass terminating fittings available separately

Applications:

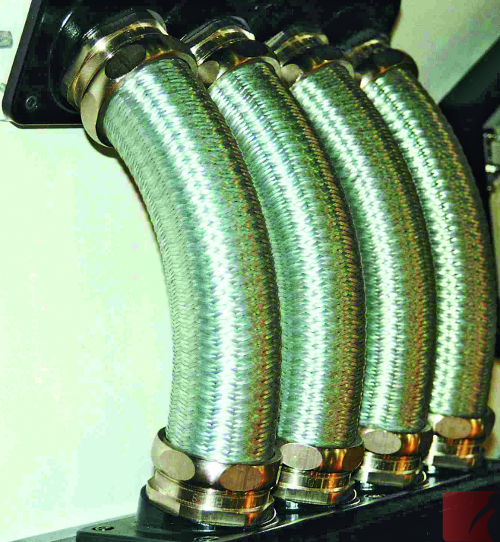

Excellent for cable & wire protection where EMC shielding is a must.

Other applications include: EMC applications, instrumentation equipment, metering & measuring apparatus, machine building, railway industry, shipbuilding and automation.

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Silver
Weight:
0.35 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
21.0 mm
Conduit ID:
17.0 mm
Static Bend Radius:
38 mm
Dynamic Bend Radius:
95 mm

Datasheet

Certifications

EN 50289-1

Alternate SKU Numbers

4016-701-017 | 4016701017 | 4016 701 017 | 4016_701_017 | 4016/701/017 | 4016,701,017 | 4016+701+017
