SPR
1010.101.025

Description

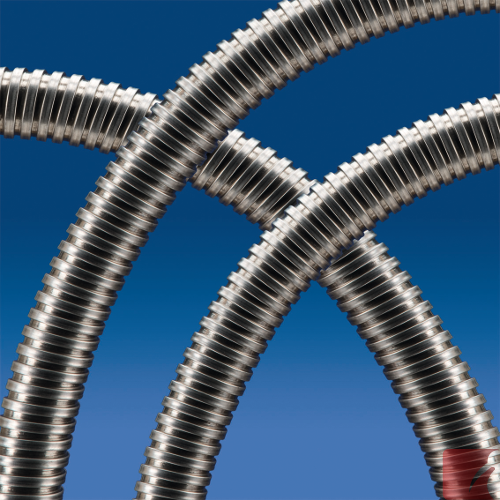

OD 31.0 mm Protective metal conduit for wire, cable and fiber optic sensor applications

IP 40 sealing level

-60ºC to +220ºC

Material:

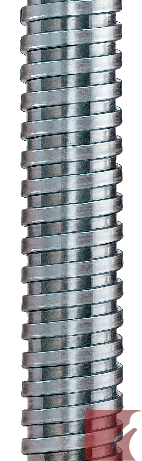

  • strip-wound galvanized steel wire helix construction
  • hooked profile, round cross section
  • polygonal profile

Properties:

  • ultra flexible, "slinky" in nature
  • good compression strength
  • stretch resistant
  • wide application temperature range

Applications:

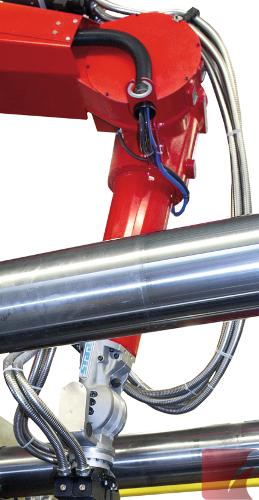

Excellent for cable & wire protection, fiber optics cables, optoelectronics, machine building, lighting, robotics, measuring and sensor technologies.

Other applications include: packaging machinery, railway industry, shipbuilding and automation.

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Silver
Weight:
0.34 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
31.0 mm
Conduit ID:
25.0 mm
Static Bend Radius:
50 mm
Dynamic Bend Radius:
50 mm

Certifications

Alternate SKU Numbers

1010-101-025 | 1010101025 | 1010 101 025 | 1010_101_025 | 1010/101/025 | 1010,101,025 | 1010+101+025
