SPR
1010.101.038

Description


OD 43.0 mm Protective metal conduit for wire, cable and fiber optic sensor applications

IP 40 sealing level

-60ºC to +220ºC

Material:

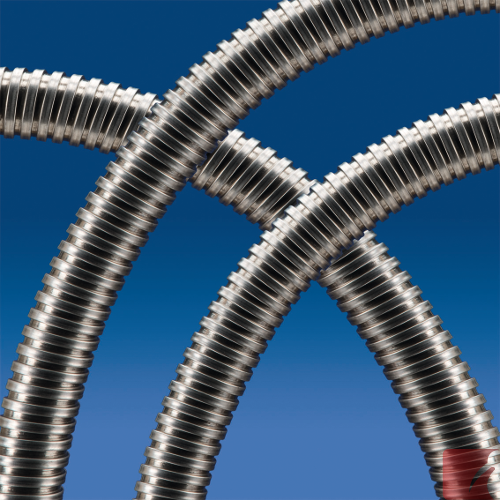

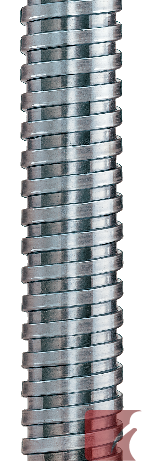

  • strip-wound galvanized steel wire helix construction
  • hooked profile, round cross section
  • polygonal profile

Properties:

  • ultra flexible, "slinky" in nature
  • good compression strength
  • stretch resistant
  • wide application temperature range

Applications:

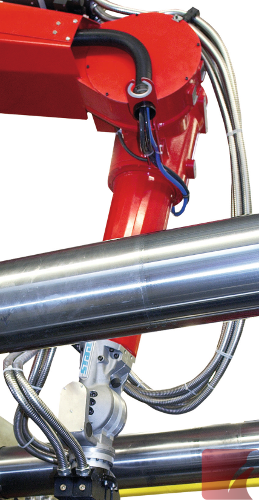

Excellent for cable & wire protection, fiber optics cables, optoelectronics, machine building, lighting, robotics, measuring and sensor technologies.

Other applications include: packaging machinery, railway industry, shipbuilding and automation.

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Silver
Weight:
0.63 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
43.0 mm
Conduit ID:
38.0 mm
Static Bend Radius:
95.0 mm
Dynamic Bend Radius:
95.0 mm

Certifications

Alternate SKU Numbers

1010-101-038 | 1010101038 | 1010 101 038 | 1010_101_038 | 1010/101/038 | 1010,101,038 | 1010+101+038
