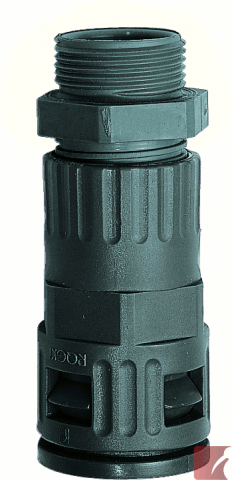

RQGZ-M M20 x 1.5 mm Metric FLEXAquick® Strain Relief Connector for 21.2 mm OD conduit
5020.031.222

Description


RQGZ-M M20 x 1.5 mm Metric FLEXAquick® Strain Relief Connector for 21.2 mm OD conduit, outer thread

Cable clamping range: 8 - 11.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94
  • two piece strain relief system with sealing grommet

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
M20 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.018 kg
Package quantity:
10

Dimensions:
φ I:
12.00
φ B:
29.50
C:
8.00
D:
68.00
Conduit OD:
21.2 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
