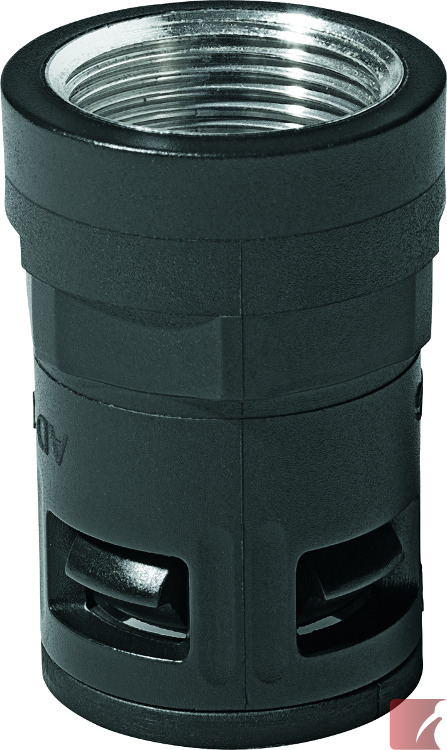

RQGK2-M Metric Female Metal Thread Connector
5108.010.212

Description


M12 x 1.5 mm FLEXAquick® straight female connector, for 10.0 mm OD conduit, inner nickel-plated brass thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass inner thread (female)

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M12 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.009 kg
Package quantity:
50

Dimensions:
φ I:
7.00
φ B:
20.00
C:
7.50
D:
38.50
Conduit OD:
10 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5108-010-212 | 5108010212 | 5108 010 212 | 5108_010_212 | 5108/010/212 | 5108,010,212 | 5108+010+212
