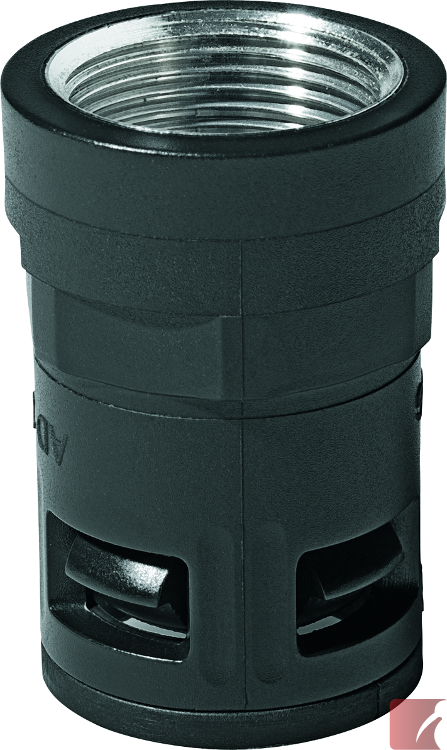

RQGK2-M Metric Female Metal Thread Connector
5108.054.263

Description


M63 x 1.5 mm FLEXAquick® straight female connector, for 54.5 mm OD conduit, inner nickel-plated brass thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass inner thread (female)

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M63 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.186 kg
Package quantity:
10

Dimensions:
φ I:
47.50
φ B:
79.00
C:
17.00
D:
95.50
Conduit OD:
54.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5108-054-263 | 5108054263 | 5108 054 263 | 5108_054_263 | 5108/054/263 | 5108,054,263 | 5108+054+263
