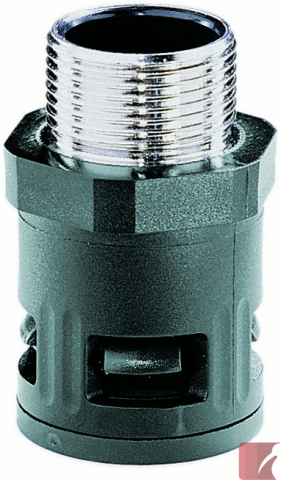

RQGK-P PG Metal Thread Straight Connector
5020.074.248

Description


PG 48 FLEXAquick® straight connector, for 54.5 mm OD conduit, outer thread made of nickel-plated brass, body made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass outer thread
  • fitting includes "OR" O-ring and "FRH" flat sealing ring

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant
  • Use with ROHRflex® corrugated conduits



Specifications

Connector Thread:
PG 48
Sealing Level:
IP68
Colour:
Black
Weight:
0.204 kg
Package quantity:
10

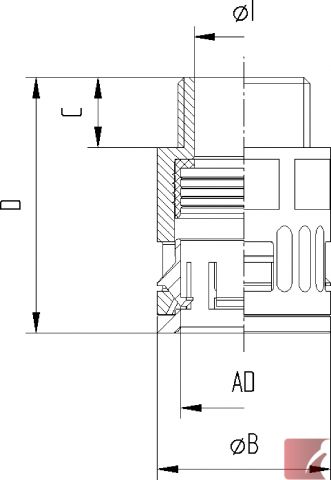

Dimensions:
φ I:
47.50
φ B:
74.00
C:
17.00
D:
88.00
Conduit OD:
54.5

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
