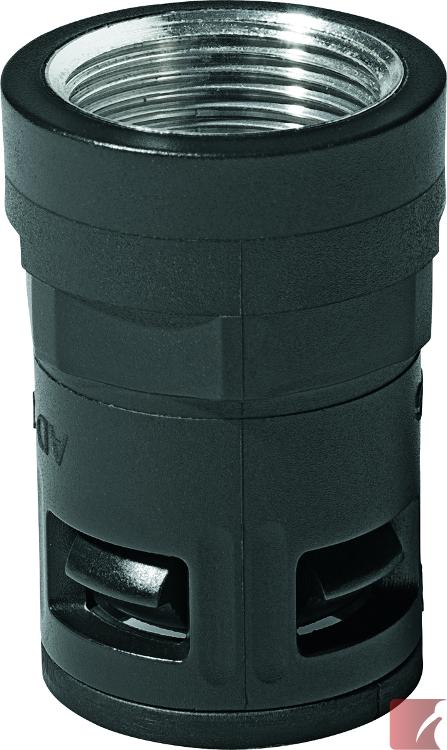

RQGK2-P PG Female Metal Thread Connector
5020.075.211

Description


PG 11 FLEXAquick® straight female connector, for 15.8 mm OD conduit, inner nickel-plated brass thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass inner thread (female)

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 11
Sealing Level:
IP68
Colour:
Black
Weight:
0.023 kg
Package quantity:
50

Dimensions:
φ I:
11.00
φ B:
27.00
C:
19.00
D:
44.00
Conduit OD:
15.8 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-075-211 | 5020075211 | 5020 075 211 | 5020_075_211 | 5020/075/211 | 5020,075,211 | 5020+075+211
