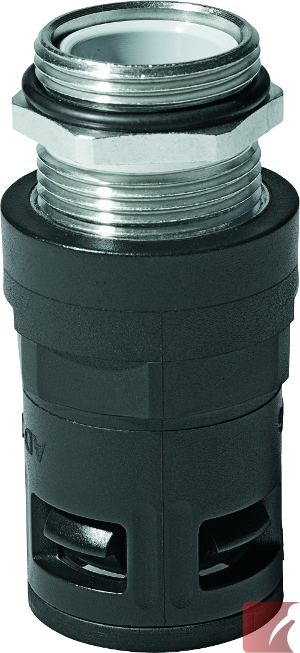

PG 11 FLEXAquick® straight shielded metal strain relief connector, for 15.8 mm OD conduit, outer thread, made of polyamide

Cable clamping range: 4.0 - 9.5 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

• plastic PA 6 polyamide body
• nickel plated brass strain relief & thread
• EMC protection with shielding contacts for bonding shielded cable
• two piece strain relief system with sealing grommet
• includes "OR" O-ring for outer thread sealing

Properties:

• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant
• EMC shielding and sealed cable strain relief in one package

Use with ROHRflex® corrugated conduits
