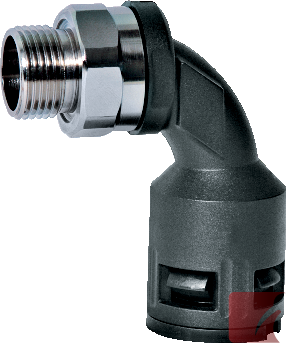

RQBK90DR-P PG Swivel 90° Metal Thread Bend Elbow
5521.021.216

Description


PG 16 FLEXAquick® 90° elbow connector, for 21.2 mm OD conduit, outer nickel-plated brass swivel thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass outer thread
  • the thread swivels on the body of the fitting
  • fitting includes "OR" O-ring and "FRH" flat sealing ring

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits.

Specifications

Connector Thread:
PG 16
Sealing Level:
IP68
Colour:
Black
Weight:
0.062 kg
Package quantity:
50

Dimensions:
φ I:
13.00
φ B:
29.50
C:
13.00
D:
62.00
Conduit OD:
21.2 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5521-021-216 | 5521021216 | 5521 021 216 | 5521_021_216 | 5521/021/216 | 5521,021,216 | 5521+021+216
