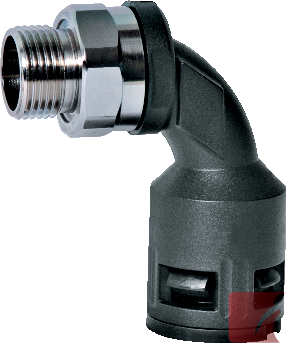

PG 36 FLEXAquick® 90° elbow connector, for 42.5 mm OD conduit, outer nickel-plated brass swivel thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

• plastic PA 6 polyamide body
• nickel plated brass outer thread
• the thread swivels on the body of the fitting
• fitting includes "OR" O-ring and "FRH" flat sealing ring

Properties:

• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant
• high-torque tolerant

Innovative feature:

• Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits.
