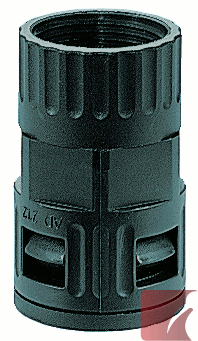

RQG2-M Metric Female Connector
5020.078.216

Description


M16 x 1.5 mm FLEXAquick® straight female connector, for 15.8 mm OD conduit, inner thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • made of PA 6 polyamide plastic

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Quick assembly

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M16 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.0076 kg
Package quantity:
50

Dimensions:
φ I:
12.50
φ B:
23.00
C:
9.50
D:
39.00
Conduit OD:
15.8 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
