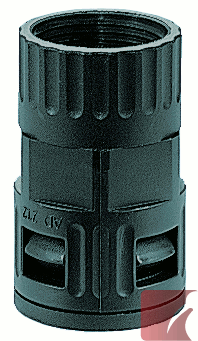

RQG2-N NPT Female Connector
5020.080.217

Description


1 1/4" NPT FLEXAquick® straight female connector, for 42.5 mm OD conduit, inner thread, made of polyamide

IP 68 / IP69K sealing level

-40ºC to +115ºC

Material:

  • made of PA 6 polyamide plastic

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Quick assembly

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
1 1/4" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.032 kg
Package quantity:
10

Dimensions:
φ I:
30.00
φ B:
52.00
C:
18.00
D:
58.50
Conduit OD:
42.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-080-217 | 5020080217 | 5020 080 217 | 5020_080_217 | 5020/080/217 | 5020,080,217 | 5020+080+217
