RQG2-N NPT Female Connector
5020.080.218

Description

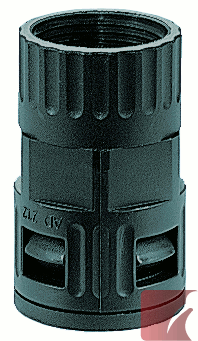

1" NPT FLEXAquick® straight female connector, for 34.5 mm OD conduit, inner thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • made of PA 6 polyamide plastic

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Quick assembly

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
1" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.03 kg
Package quantity:
10

Dimensions:
φ I:
37.70
φ B:
44.00
C:
16.00
D:
56.00
Conduit OD:
34.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-080-218 | 5020080218 | 5020 080 218 | 5020_080_218 | 5020/080/218 | 5020,080,218 | 5020+080+218
