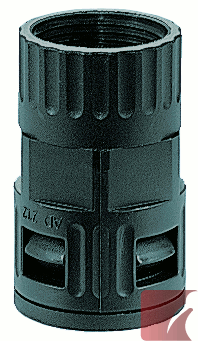

RQG2-P PG Female Connector
5020.081.211
Description
PG 11 FLEXAquick® straight female connector, for 13.0 mm OD conduit, inner thread, made of polyamide
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- made of PA 6 polyamide plastic
Properties:
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Quick assembly
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 11
Sealing Level:
IP68
Colour:
Black
Weight:
0.01 kg
Package quantity:
50
Dimensions:
φ I:
12.50
φ B:
23.00
C:
15.00
D:
39.50
Conduit OD:
15.8 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
5020-081-211 | 5020081211 | 5020 081 211 | 5020_081_211 | 5020/081/211 | 5020,081,211 | 5020+081+211
