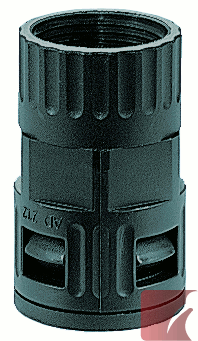

RQG2-P PG Female Connector
5020.081.216
Description
PG 16 FLEXAquick® straight female connector, for 21.2 mm OD conduit, inner thread, made of polyamide
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- made of PA 6 polyamide plastic
Properties:
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Quick assembly
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 16
Sealing Level:
IP68
Colour:
Black
Weight:
0.0138 kg
Package quantity:
50
Dimensions:
φ I:
17.00
φ B:
29.50
C:
16.00
D:
45.00
Conduit OD:
21.2 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
5020-081-216 | 5020081216 | 5020 081 216 | 5020_081_216 | 5020/081/216 | 5020,081,216 | 5020+081+216
