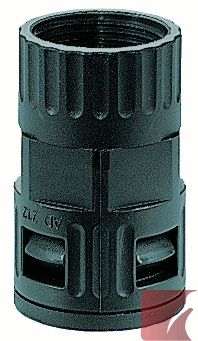

RQG2-P PG Female Connector
5020.081.229

Description


PG 29 FLEXAquick® straight female connector, for 34.5 mm OD conduit, inner thread, made of polyamide

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • made of PA 6 polyamide plastic

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Quick assembly

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 29
Sealing Level:
IP68
Colour:
Black
Weight:
0.026 kg
Package quantity:
10

Dimensions:
φ I:
30.50
φ B:
44.00
C:
18.00
D:
52.00
Conduit OD:
34.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-081-229 | 5020081229 | 5020 081 229 | 5020_081_229 | 5020/081/229 | 5020,081,229 | 5020+081+229
