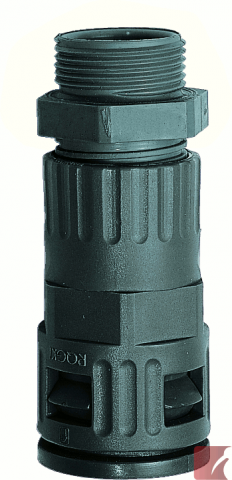

RQGZ-M M50 x 1.5 mm Metric FLEXAquick® Strain Relief Connector for 42.5 mm OD conduit, outer thread

Cable clamping range: 27 - 35.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

• plastic PA 6 polyamide
• VO acc. to UL94
• two piece strain relief system with sealing grommet

Properties:

• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant

Innovative feature:

• Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits
