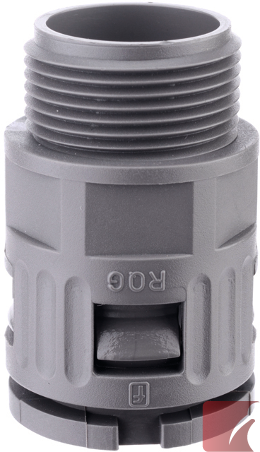

RQG-M Grey Metric Straight Connector
5020.037.012

Description


M12 x 1.5 mm FLEXAquick® Grey straight connector, for 13.0 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M12 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.0052 kg
Package quantity:
50

Dimensions:
φ I:
7.00
φ B:
20.00
C:
12.00
D:
37.00
Conduit OD:
13.0 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

2-796283-2 or 502037012 | 5020-037-012 | 5020037012 | 5020 037 012 | 5020_037_012 | 5020/037/012 | 5020,037,012 | 5020+037+012
