RQG-M Grey Metric Straight Connector
5020.037.045

Description

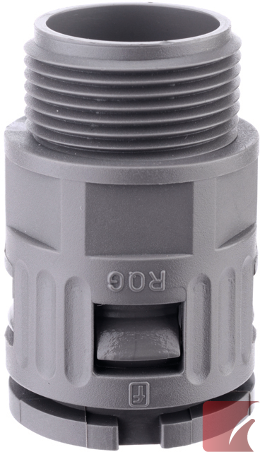

M50 x 1.5 mm FLEXAquick® Grey straight connector, for 42.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.029 kg
Package quantity:
25

Dimensions:
φ I:
36.50
φ B:
56.00
C:
15.50
D:
55.00
Conduit OD:
42.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
