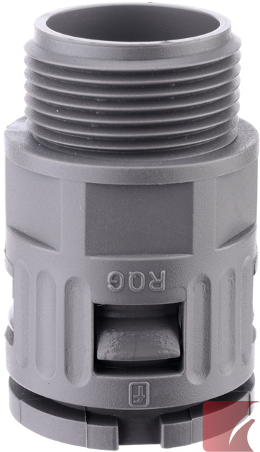

RQG-M Grey Metric Straight Connector
5020.037.050
Description
M50 x 1.5 mm FLEXAquick® Grey straight connector, for 54.5 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via a built-in release clip
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.038 kg
Package quantity:
10

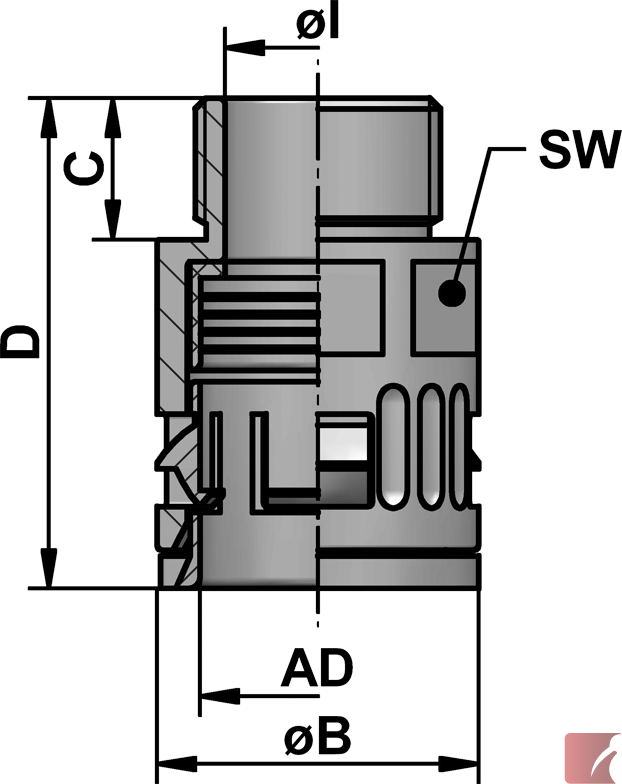

Dimensions:
φ I:
42.50
φ B:
63.50
C:
15.50
D:
55.00
Conduit OD:
54.5 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
3-796283-0 | 5020-037-050 | 5020037050 | 5020 037 050 | 5020_037_050 | 5020/037/050 | 5020,037,050 | 5020+037+050
