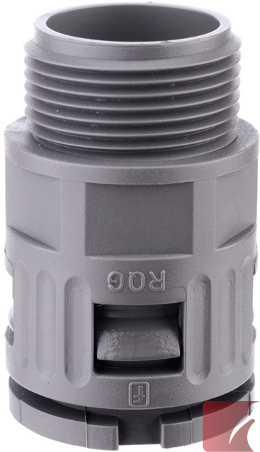

RQG-M Grey Metric Straight Connector
5020.065.003
Description
M12 x 1.5 mm FLEXAquick® Grey straight connector, for 10.0 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via a built-in release clip
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M12 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.004 kg
Package quantity:
50
Dimensions:
φ I:
7.00
φ B:
17.00
C:
11.50
D:
34.50
Conduit OD:
10.0 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
3-796283-1 | 5020-065-003 | 5020065003 | 5020 065 003 | 5020_065_003 | 5020/065/003 | 5020,065,003 | 5020+065+003
