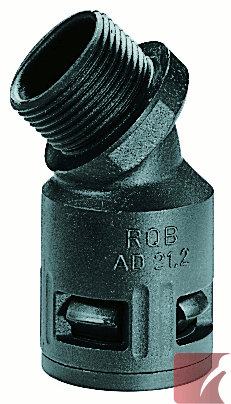

RQB45-N 1 1/2'' NPT FLEXAquick 45 degree Elbow Connector for 42.5 mm OD conduit
5020.017.208
Description
1 1/2'' NPT FLEXAquick 45 degree Elbow Connector for 42.5 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +120ºC
Innovative feature:
- Smooth gentle bore, 45° elbow conduit fitting
- Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!
Material:
- plastic PA 6 polyamide, nylon
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Use with all ROHRflex® corrugated conduits
Quick Links to other Products:
Specifications
Connector Thread:
1 1/2" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.063 kg
Package quantity:
10
Dimensions:
φ I:
35.00
φ B:
52.00
C:
17.00
D:
81.00
Conduit OD:
42.5 mm
Certifications
CSA 22.2
# 227.3-05
UL 1696
#E86359
E162 & 662
SMP800C
45545-2
HL2 Rated
NFF 16-
101/102 I3
Alternate SKU Numbers
5020-017-208 | 5020017208 | 5020 017 208 | 5020_017_208 | 5020/017/208 | 5020,017,208 | 5020+017+208
