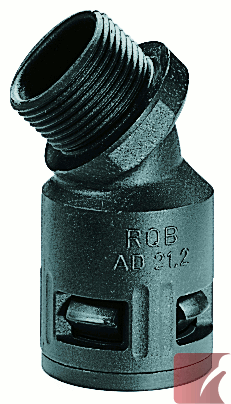

RQB45-N 1 1/4'' NPT FLEXAquick 45 degree Elbow Connector for 34.5 mm OD conduit
5020.017.215

Description


1 1/4" NPT FLEXAquick® 45° elbow connector for 34.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Innovative feature:

  • Smooth gentle bore, 45° elbow conduit fitting
  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide, nylon
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Use with all ROHRflex® corrugated conduits

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
1 1/4" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.045 kg
Package quantity:
10

Dimensions:
φ I:
29.00
φ B:
44.00
C:
14.00
D:
73.50
Conduit OD:
34.5 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
