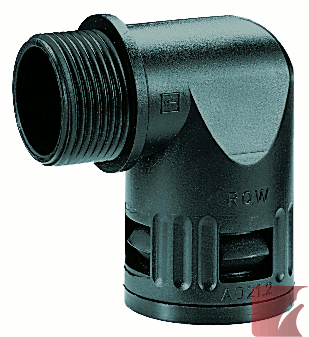

RQW-N 1 1/2" NPT FLEXAquick® 90° elbow connector for 42.5 mm OD conduit NW 36, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Material:

• plastic PA 6 polyamide
• VO acc. to UL94

Properties:

• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Innovative feature:

• Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits
