RQW1-N IP66 Sealing
5727.015.205

Description

1/2" NPT FLEXAquick® 90° elbow connector, for 15.8 mm OD conduit, outer thread, made of polyamide

IP 66 sealing level

-40ºC to +115ºC

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Use with ROHRflex® conduits

Specifications

Connector Thread:
1/2" NPT
Sealing Level:
IP66
Colour:
Black
Weight:
0.01 kg
Package quantity:
50

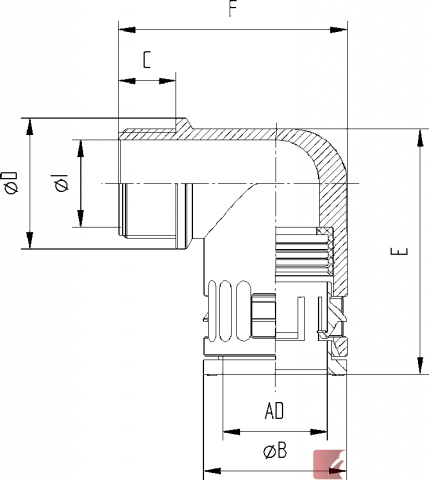

Dimensions:
φ I:
16.00
φ B:
26.00
C:
11.00
D:
40.50
Conduit OD:
15.8 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05

Alternate SKU Numbers

5727-015-205 | 5727015205 | 5727 015 205 | 5727_015_205 | 5727/015/205 | 5727,015,205 | 5727+015+205
