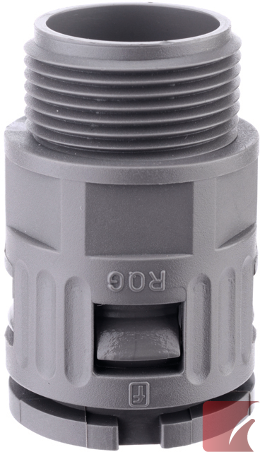

RQG-P PG Grey Straight Connector
5020.026.011
Description
PG 11 FLEXAquick® Grey straight connector, for 15.8 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via a built-in release clip
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 11
Sealing Level:
IP68
Colour:
Grey
Weight:
0.006 kg
Package quantity:
50
Dimensions:
φ I:
12.50
φ B:
23.00
C:
10.00
D:
37.00
Conduit OD:
15.8 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
969804-3 | 5020-026-011 | 5020026011 | 5020 026 011 | 5020_026_011 | 5020/026/011 | 5020,026,011 | 5020+026+011
