RQG-P PG Grey Straight Connector
5020.026.016
Description

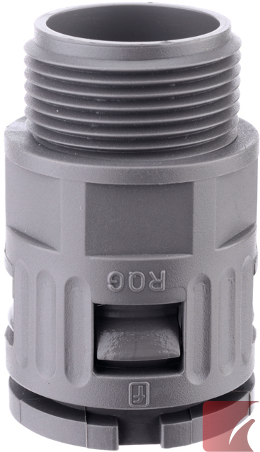

PG 16 FLEXAquick® Grey straight connector, for 21.2 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via a built-in release clip
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 16
Sealing Level:
IP68
Colour:
Grey
Weight:
0.01 kg
Package quantity:
50
Dimensions:
φ I:
17.00
φ B:
29.50
C:
13.00
D:
46.00
Conduit OD:
21.2 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3
