RQG-P PG Grey Straight Connector
5020.027.009

Description

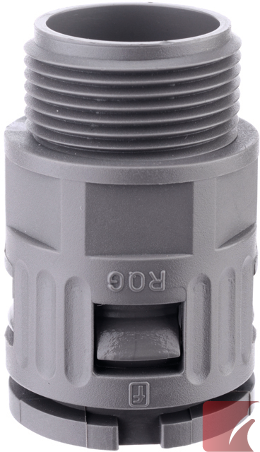

PG 13.5 FLEXAquick® Grey straight connector, for 21.2 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 13.5
Sealing Level:
IP68
Colour:
Grey
Weight:
0.009 kg
Package quantity:
10

Dimensions:
φ I:
15.40
φ B:
29.50
C:
13.00
D:
43.50
Conduit OD:
21.2 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

969834-4 | 5020-027-009 | 5020027009 | 5020 027 009 | 5020_027_009 | 5020/027/009 | 5020,027,009 | 5020+027+009
