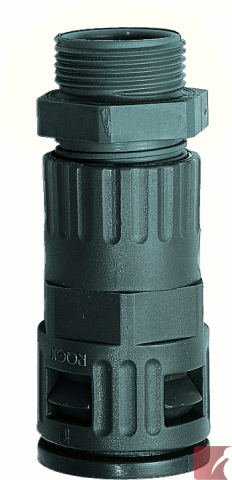

RQGZ-P PG Strain Relief Connector
5020.034.215

Description


PG 13.5 FLEXAquick® straight strain relief connector, for 21.2 mm OD conduit, outer thread

Cable clamping range: 6 - 12.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94
  • two piece strain relief system with sealing grommet

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 13.5
Sealing Level:
IP68
Colour:
Black
Weight:
0.022 kg
Package quantity:
10

Dimensions:
φ I:
12.00
φ B:
29.50
C:
8.00
D:
70.00
Conduit OD:
21.2 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

1-969835-1 | 5020-034-215 | 5020034215 | 5020 034 215 | 5020_034_215 | 5020/034/215 | 5020,034,215 | 5020+034+215
