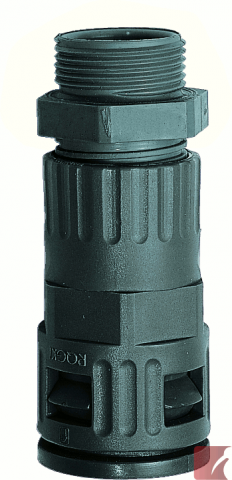

RQGZ-P PG Strain Relief Connector
5020.034.221

Description


PG 21 FLEXAquick® straight strain relief connector, for 28.5 mm OD conduit, outer thread

Cable clamping range: 13 - 18.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94
  • two piece strain relief system with sealing grommet

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 21
Sealing Level:
IP68
Colour:
Black
Weight:
0.035 kg
Package quantity:
10

Dimensions:
φ I:
20.00
φ B:
37.00
C:
11.00
D:
82.00
Conduit OD:
28.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

969835-5 | 5020-034-221 | 5020034221 | 5020 034 221 | 5020_034_221 | 5020/034/221 | 5020,034,221 | 5020+034+221
