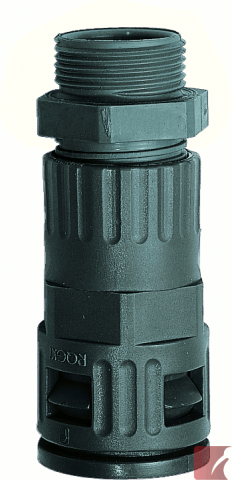

RQGZ-P PG Strain Relief Connector
5020.034.248

Description


PG 48 FLEXAquick® straight strain relief connector, for 54.5 mm OD conduit, outer thread

Cable clamping range: 34 - 44.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94
  • two piece strain relief system with sealing grommet

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 48
Sealing Level:
IP68
Colour:
Black
Weight:
0.112 kg
Package quantity:
10

Dimensions:
φ I:
44.00
φ B:
68.00
C:
14.00
D:
144.00
Conduit OD:
54.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

969835-8 | 5020-034-248 | 5020034248 | 5020 034 248 | 5020_034_248 | 5020/034/248 | 5020,034,248 | 5020+034+248
