RQW1-P
5020.050.207

Description

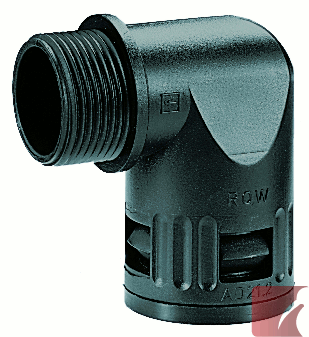

PG 7 FLEXAquick® 90° elbow connector, for 10.0 mm OD conduit, outer thread, made of polyamide

IP 66 sealing level

-40ºC to +115ºC

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Use with ROHRflex® conduits

Specifications

Connector Thread:
PG 7
Sealing Level:
IP66
Colour:
Black
Weight:
0.004 kg
Package quantity:
50

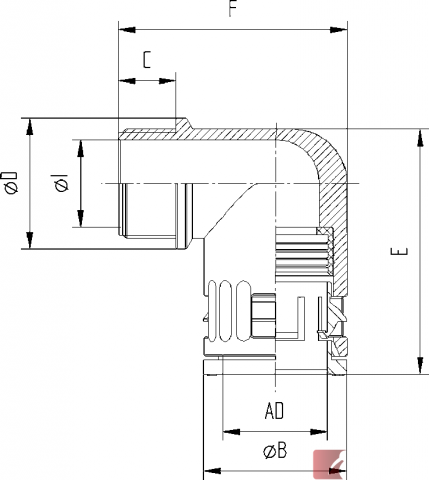

Dimensions:
φ I:
7.00
φ B:
17.00
C:
9.50
D:
33.00
Conduit OD:
10.0 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated

Alternate SKU Numbers

5020-050-207 | 5020050207 | 5020 050 207 | 5020_050_207 | 5020/050/207 | 5020,050,207 | 5020+050+207
