RQW1-P
5020.050.209
Description

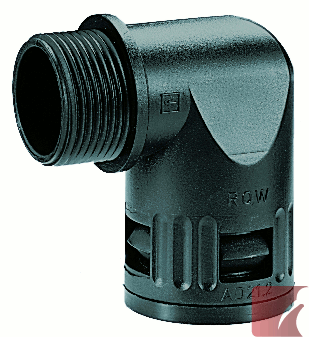

PG 9 FLEXAquick® 90° elbow connector, for 13.0 mm OD conduit, outer thread, made of polyamide
IP 66 sealing level
-40ºC to +115ºC
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® conduits
Specifications
Connector Thread:
PG 9
Sealing Level:
IP66
Colour:
Black
Weight:
0.006 kg
Package quantity:
50

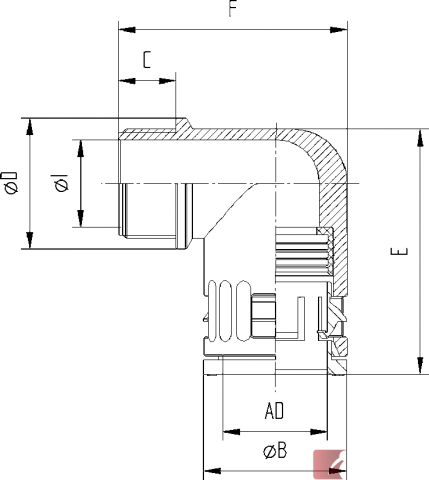

Dimensions:
φ I:
12.00
φ B:
20.00
C:
10.00
D:
34.00
Conduit OD:
13.0 mm
Certifications
CSA 22.2
# 227.3-05
45545-2
HL2 Rated
Alternate SKU Numbers
5020-050-209 | 5020050209 | 5020 050 209 | 5020_050_209 | 5020/050/209 | 5020,050,209 | 5020+050+209
