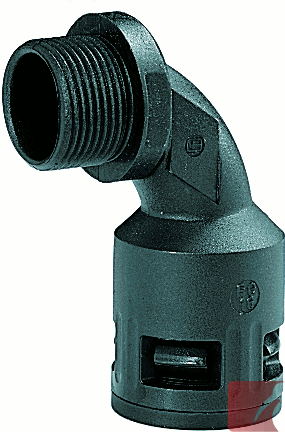

RQB90-P PG 90° Bend Elbow Connector
5020.090.213

Description


PG 13.5 FLEXAquick® 90° bend elbow connector, for 18.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 13.5
Sealing Level:
IP68
Colour:
Black
Weight:
0.02 kg
Package quantity:
50

Dimensions:
φ I:
12.50
φ B:
25.00
C:
12.00
D:
48.00
Conduit OD:
18.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-090-213 | 5020090213 | 5020 090 213 | 5020_090_213 | 5020/090/213 | 5020,090,213 | 5020+090+213
