RQB90-P PG 90° Bend Elbow Connector
5020.090.229

Description

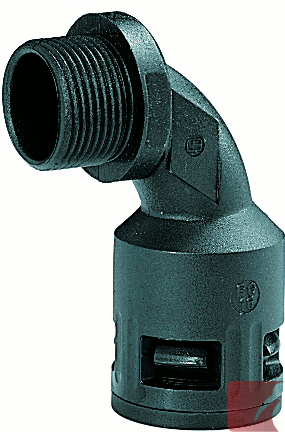

PG 29 FLEXAquick® 90° bend elbow connector, for 34.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 29
Sealing Level:
IP68
Colour:
Black
Weight:
0.052 kg
Package quantity:
10

Dimensions:
φ I:
29.00
φ B:
44.00
C:
14.00
D:
74.00
Conduit OD:
34.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-090-229 | 5020090229 | 5020 090 229 | 5020_090_229 | 5020/090/229 | 5020,090,229 | 5020+090+229
