USK-P PG 48 plastic grey straight connector for 56.0 mm OD AIRflex® conduits small 2 piece pack
5020.430.048

Description


USK-P PG 48 plastic grey straight connector for 56.0 mm OD AIRflex® conduits small 2 piece pack, outer thread, made of PP

IP 54 sealing level

-10ºC to +110ºC

Use with the following conduits:

  • Use with all AIRflex® conduits

Construction

  • Body and compression nut: made of PP polypropylene
  • compression fitting design locks firmly onto conduit

Properties

  • good dust protection
  • splash proof
  • good vibration tolerance
  • excellent tension strength

Available also in a larger 10 piece pack size: Click here for part # 5020.130.048

Quick Links to other Products:

Specifications

Connector Thread:
PG 48
Sealing Level:
IP 54
Colour:
Grey
Weight:
0.066 kg
Package quantity:
2

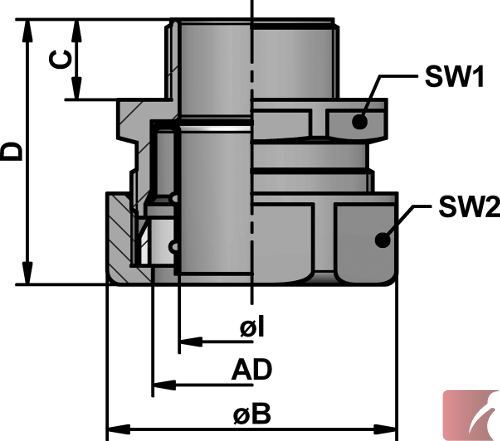

Dimensions:
φ I:
46.00
φ B:
77.00
C:
15.00
D:
57.00
Conduit OD:
56.0 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
